Product Details
＋
Camden CX-ED1309 Series grade 1 ANSI electric strikes feature 'universal' field selection of 12/24V, AC or DC and fail safe or fail secure operation. They are specifically designed for narrow stile aluminum door frames, typically used for store front retail doors.

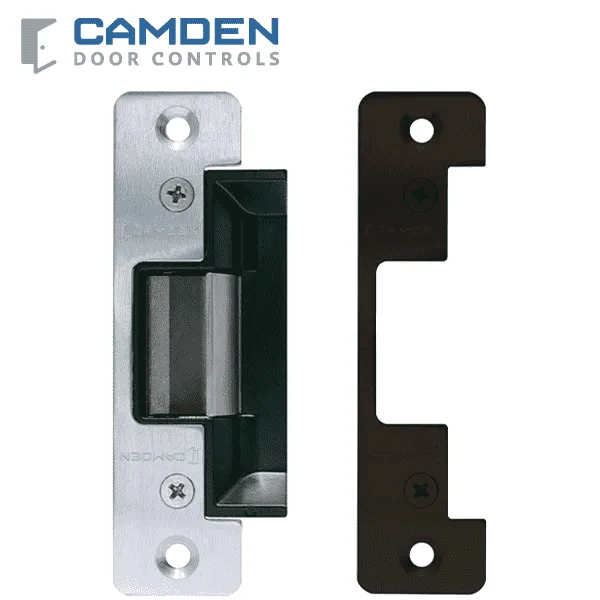

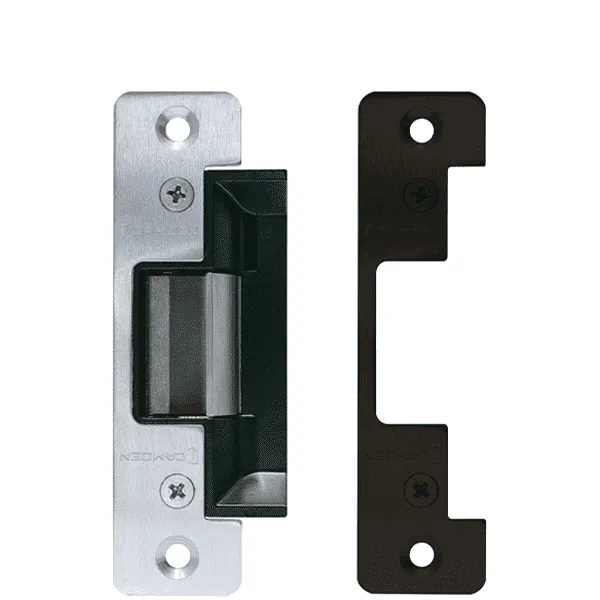

CX-ED1379 packages the strike body with (2) ANSI round face plates, one with brushed aluminum finish and one with dark bronze finish.- For cylindrical locksets and spring latches
- Selectable Fail Safe/Fail Secure
- Selectable 12/24V, AC/DC
- 1/2” to 5/8” latch projection
- Easy fit connectors
- A range of aluminum and dark bronze face plates
- 5 year warranty
Specifications:
| Voltage: | 12/24V AC/DC |
| Current Draw: | 260mA @ 12V DC, 150mA @ 24V DC |
| Face Plates: | CX-ED1379: Brushed aluminum (BHMA 628) & Dark bronze (BHMA 710) |
| Static Strength: | 1,500 Lbs. |
| Dynamic Strength: | 70 Ft-Lbs. |
| Endurance: | 1,000,000 Cycles (Factory Test), 250,000 Cycles (UL Verified) |
| Operation: | AC-Buzz, DC-Silent |
| Duty: | Continuous |
| Dimensions (Body): | 4-7/8" H x 1-11/16" W x 1-5/8" D, (124mm x 43mm x 42mm) |
