Product Details
＋

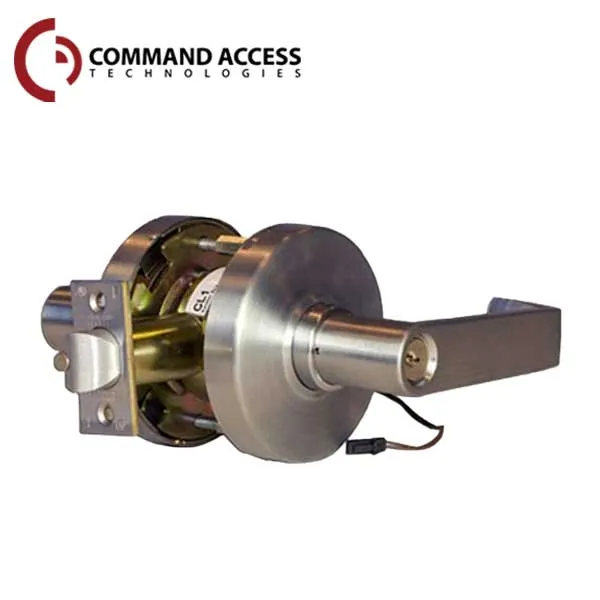

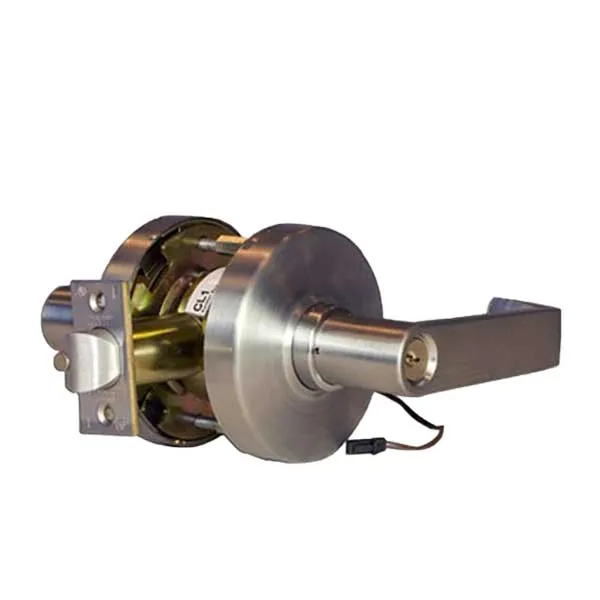

The Command Access CL1 is a high quality grade 1 cylindrical lock with the look and feel our customers have come to expect from leading brands, but at a significantly lower price. The CL1 is an ideal solution for that project where a “brand name” electrified product is not specified or required yet a high quality and economical solution is desired. You can install this lock with the confidence of knowing that the CL1 meets or exceeds the high standards of our other grade 1 modifications and carries the same no hassle 3-year warranty. This model is a Fail Secure.
Features:
- Fail Secure - Outside lever unlocked (EU) electronically.
- Latchbolt retracted by key outside or lever inside.
- Switched power allows outside lever to retract latchbolt.
- Inside lever is always free for immediate egress.
- Continuous duty solenoids allow for “continuously on” applications
- Plug-in bridge rectifier that allows for an AC or DC power source
- Low current draw clutching lever design
- Available with Schlage C type keyway
- Voltage options - 24V (AC/DC)
Specifications:
| Lock Function: | EU - Fail Secure - Electronically Unlocked - locks upon Power Loss |
| Handing: | Non-Handed |
| Door Thickness: | 1-9/16" to 2-1/8" |
| Backset: | 2-3/4" |
| Latch: | 1" Throw |
| Levers: | L6 Lever |
| Cylinder: | Schlage "C" Keyway |
| Finish: | 626 - Satin Chrome |
| Operating Voltage: | 24VAC/DC |
| Amperage: | 150 mA |
| Power Consumption: | 3 watts |
| Solenoid Coil Resistance: | 159 Ω |
| Certifications: | ANSI/BHMA Meets or exceeds Series Grade 1 requirements UL Listed 3-hour fire rating |
| Warranty: | 3-Year Manufacturer Warranty |
