Product Details
＋

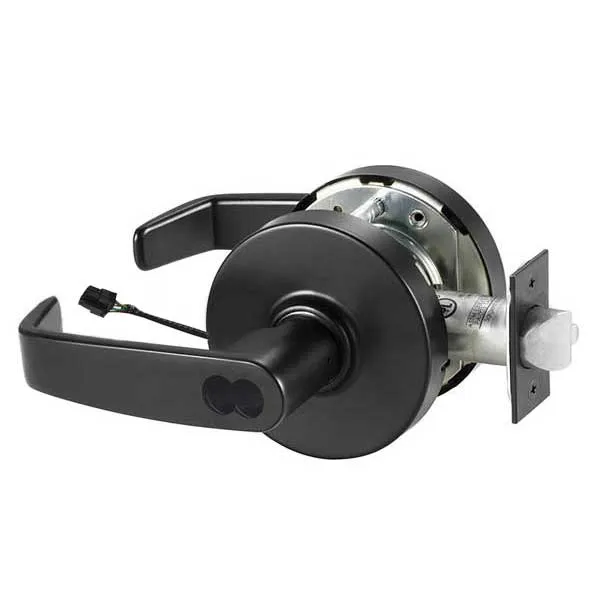

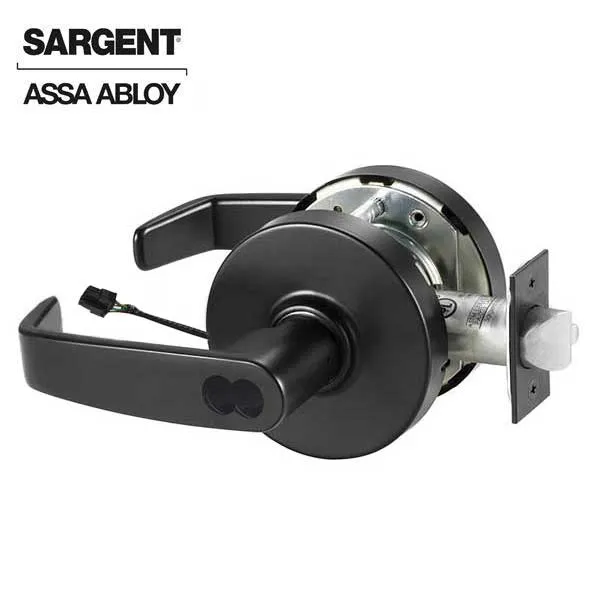

The SRG-28-70-10G71-LL-24V-BSP is a heavy duty electrified cylindrical key-in-lever handle lockset exceeds by nine times the Grade 1 standards. As for abusive force, this lock endures more than 1.5 times the standard without allowing entry. The 10 line trim is designed to conform to national and state fire and handicapped requirements.
Features
- 10G71: Power off, locks outside lever
- Deadlocking latch
- Key retracts latch
- Inside lever always allows egress
- Voltage requirements: 24VDC Regulated; always specify voltage
250mA at 24VDC
Provided with ElectroLynx® 8-Pin Connector - 2 keys included
Specifications
| Construction: | Heavy Duty Steel |
| Lock Function: | 71 : Electromechanical Fail Secure |
| Door Thickness: | 1-3/4" (44mm) |
| Backset: | 2-3/4" (70mm) |
| Faceplate: | Wrought brass or stainless steel. Standard — 2-1/4" (57mm) x 1-1/8" (29mm) |
| Strike: | 2-3/4" Curved Lip Strike standard. 808 curved lip ANSI strike (28- option) |
| Latch | Stainless steel 1/2" (13mm) throw, Brass 3/4" (19mm) throw for pairs of doors (41- option) |
| Bolt Projection: | 1/2" |
| Stile: | 4-1/2" |
| Power | Hard Wired |
| Operating Voltage | 24VDC |
| Amp Draw | 250mA |
| Rose & Lever: | Standard L Rose and L Lever |
| Cylinder: |
Brass, 6 pin, LA keyway standard (not included) |
| Finish: | BSP - Black Suede Powder Coat |
| Certifications: | UL / cUL Listed for 3-Hour Doors |
| Warranty: | 7-Year Manufacturer Warranty |
