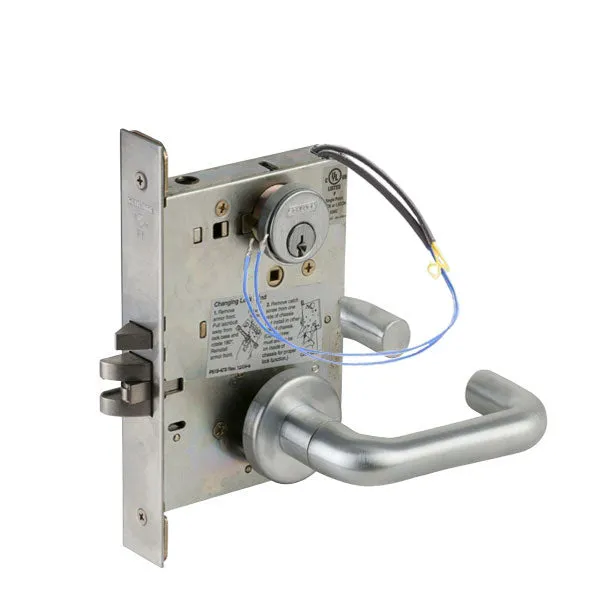

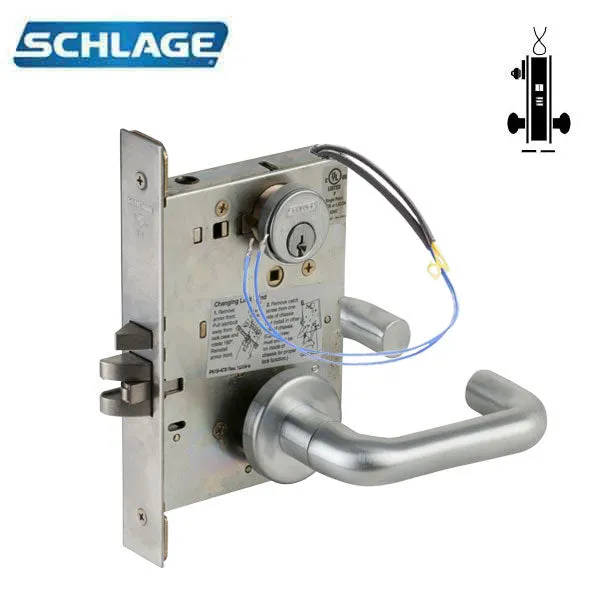

The Schlage L Series has long been the benchmark for mortise locks. Beyond strength and security – it offers tremendous flexibility to allow it to meet the needs of most every application

Features

• Outside lever continuously unlocked (EU) by 12V or 24V DC
• Latchbolt retracted by lever inside or key outside
• Auxiliary latch deadlocks latchbolt when door is closed
• Inside lever always free for immediate egress
• Switch or power failure locks (EU) outside lever



Specifications

Lock Function	ANSI Electrically unlocking outside lever, outside cylinder
Handing	Non-Handed
Door Thickness	1 3/4" (44 mm)
Cylinder	6-pin Cylinder
Backset	2 3/4" (70 mm) only
Bolt	1" (25 mm) throw stainless steel deadbolt
Latch	3/4" (19 mm) throw stainless steel latch with anti-friction tongue
Lever	03 Lever
Rose	A Rose
Input Voltage	12 or 24 VDC
Operating mode	Fail Secure via switch on chassis
Current Draw	0.23 amps maximum; 0.01 amps holding
Material	Stainless Steel / Zinc
Case size	4-7/16" x 3-5/8" x 1" (113 mm x 92 mm x 25 mm)
Spacing	Knob or lever to cylinder: 3 7/8" (98 mm)
Strike	ANSI curved lip strike: 1-1/4" x 4-7/8" (32 mm x 124 mm) x 1-3/16" (30 mm) lip to center with dust box
Finish	626 - Satin Chrome
Fire Rated	3 Hour Fire Door
Certifications	ANSI/BHMI Certified A156.13-2012 Commercial Grade 1 Lock Body Mortises Inside the Edge of the Door UL/cUL Listed UL 10C
Manufacturer Warranty	1 year limited electromechanical
